Cosinus Slide® Joint
The Cosinus Slide® is the ultimate vibration-free armoured joint for heavy-duty industrial floors. Its unique 3D anchorage design delivers the highest continuous load transfer on the market, guaranteeing a durable, maintenance-free, and future-proof facility.
Product Overview
The floor is where all the activity takes place and where the money is made. Whether you operate in logistics, manufacturing, or cold storage, the long-term value of your facility depends on its concrete joints.
While many joints look similar on the surface, the true difference happens below it. The Cosinus Slide® replaces traditional discontinuous dowels with a continuous "Double Slide" load transfer system and 3D anchorage. This unique design transfers significantly more load with far less deformation than any other joint on the market. The result is a durable, safe, and worry-free floor that protects your investment and adapts to any future operational demands.
Industrial & Warehouse Floors
The strength of the industrial floor is determined by how concrete slabs are connected. The difference between joint solutions is happening below the surface.
MAXIMIZE THE VALUE OF YOUR BUILDING
Engineered to Make a Business Difference
Optimize Concrete Thickness & Lower CapEx
Because our joint transfers weight so efficiently, the structural concrete slab itself doesn't need to be as thick. Save up to 15% on total concrete volume and direct budget costs with a free custom engineering check.
Minimize Maintenance (Floor & MHE)
Protect your equipment and your concrete. The continuous, shock-free load transfer prevents joint degradation and eliminates wheel impact, drastically reducing maintenance costs for both the floor and your Material Handling Equipment (MHE).
Future-Proof Your Building
Higher quality joints mean more possibilities. An extremely flat, shock-free surface ensures maximum work efficiency for current forklift traffic and perfectly prepares your floor for next-generation automation.
Core Engineering & Installation Advantages
Hover over the cards below to see the structural mechanics that make these business outcomes possible.
No dowel technology
Prevent Squeezing & Cracking
The Problem: Traditional steel dowel plates restrict the natural expansion and shrinkage of concrete slabs, forcing the floor to crack under stress.
Our Solution: By eliminating point-source dowels entirely, our system allows the floor to contract freely and naturally. You get a completely crack-free slab without weak points.

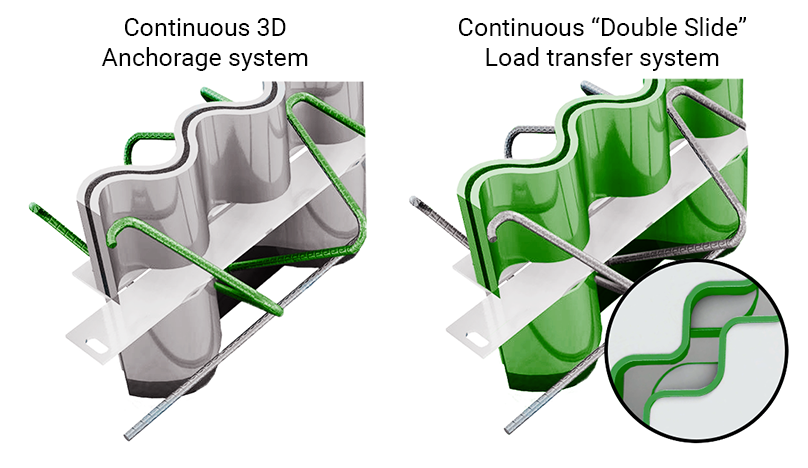

3D anchorage system
Locked in the Concrete Forever
How it works: Our crossed steel reinforcing system anchors the joint deep inside the concrete in all directions (horizontally and vertically).
The Benefit: Traditional joints get loose and bumpy under heavy forklifts. The 3D Anchorage locks the joint into the floor so it never moves or breaks.
Continuous load transfer system
(Double slide effect)
Smooth, Continuous Weight Transfer
The Engineering: Traditional joints transfer weight in steps, putting strain on concrete edges. Our patented "double slide" geometry acts like a continuous bridge.
The Benefit: Extreme loads (machinery or heavy trucks) slide effortlessly from one slab to another. No concentrated stress, no slab rocking, and no concrete failure.
No deflection and no curling
Goodbye Bumpy, Warped Edges
The Issue: Concrete edges naturally warp upward (curling) as they dry, causing dangerous vertical "lips" that trip forklifts.
The Benefit: Our interlocking sinusoidal shape holds both slab edges completely flat and aligned. It prevents vertical deflection, meaning your warehouse floor stays permanently level.
Shock and vibration free
Smooth Gliding. Zero Vibrations.
The Experience: Forklifts usually "clank" loudly when passing traditional joints, shaking the cargo and jarring the driver's spine.
The Benefit: Because the wheels cross on a continuous sinus-wave line, they never fall into a gap. Forklifts glide over joints with absolute silence, protecting equipment, goods, and worker health.
Total warehouse
layout freedom
Maximize Usable Surface
The Issue: Traditional joints crack if heavy point loads (like rack legs) are placed too close to the edge.
The Benefit: Unmatched static load transfer means you can safely place heavy racks anywhere on the floor, including directly next to the joints.
Highest load transfer
in the market
Unmatched Load-Bearing Capacity
Industry Standard: Standard floor joints fail when warehouse loads get too heavy, crumbling under point loads.
The Benefit: Certified structural modeling confirms Cosinus Slide distributes extreme static and dynamic loads better than any other armored joint. It offers massive safety margins.
Inhouse calculations
Tailored Engineering Design Checks
Our Support: Designing a floor can be complex. You don't have to guess or over-engineer.
The Benefit: Our expert in-house engineers provide full structural calculation reports tailored to your specific project loads and soil quality, giving you fully verified liability safety.
CO2 reduction
Eco-Friendly, Green Construction
The Environmental Impact: Cement production is one of the highest global CO2 producers. Thick concrete slabs heavily impact your project's carbon footprint.
The Benefit: Designing a thinner optimized concrete floor means using significantly less cement. Easily meet BREEAM, LEED, or ESG green-building requirements.
Quick deliveries due to
high inhouse stock level
Zero Supply Chain Delays
The Risk: Waiting weeks for essential building materials halts on-site operations and wastes crew budget.
The Benefit: We maintain a massive in-house stock inventory of joint profiles at all times. Get immediate shipping directly to your site, keeping your building schedule on track.
Possibility for
on-site support
On-Site Expert Guidance
Our Guarantee: A structural plan is only as good as the physical installation on site.
The Benefit: Our specialized technical consultants can guide your site contractors in person, ensuring flawless alignment and placement before concrete is poured.
High efficiency due to
installation tool
Fast, Precise Installation
The Challenge: Achieving perfect leveling and alignment during joint installation can be labor-intensive and time-consuming.
The Benefit: Our custom positioning tools help crews align, secure, and level the joints quickly and accurately, significantly reducing on-site labor time.
Prove the Performance
Compare the load transfer efficiency of Cosinus Slide® against any traditional joint system. Use our free calculator to see the exact structural advantage for your next project.
PROVEN IN THE FIELD
Cosinus Slide® in Action
LEARN MORE
See it in Action
Ready to secure your floor's future?
Documents
Technical Documentation
Access datasheets, installation guides, and certificates.
